PRODUCT

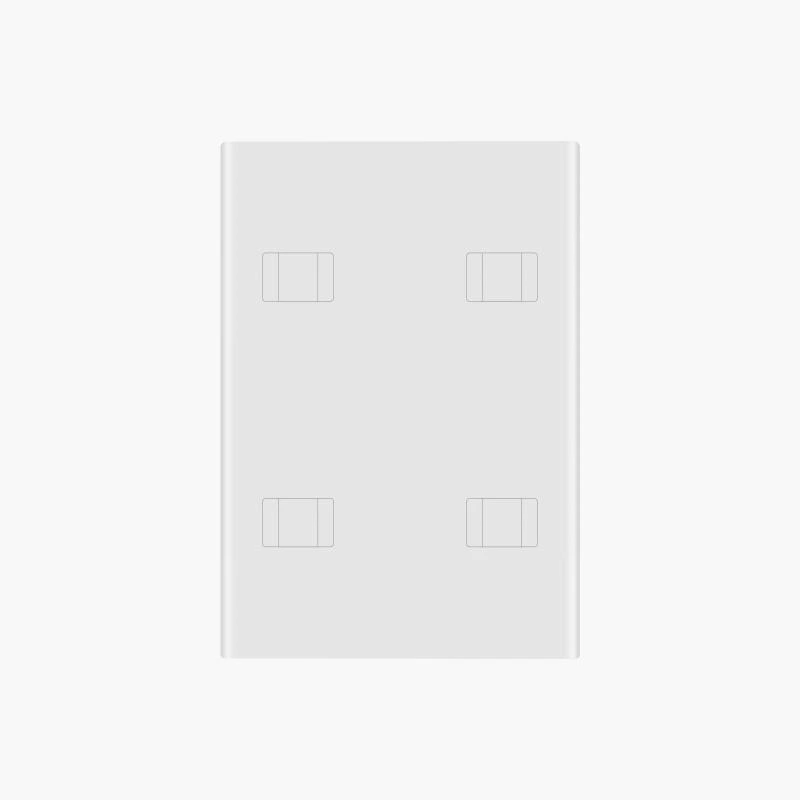

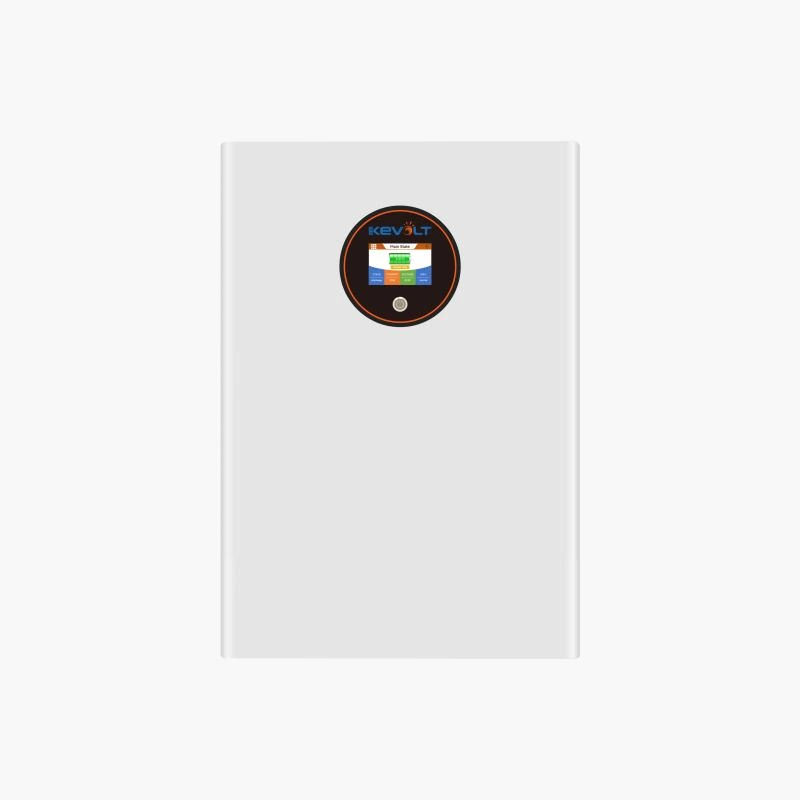

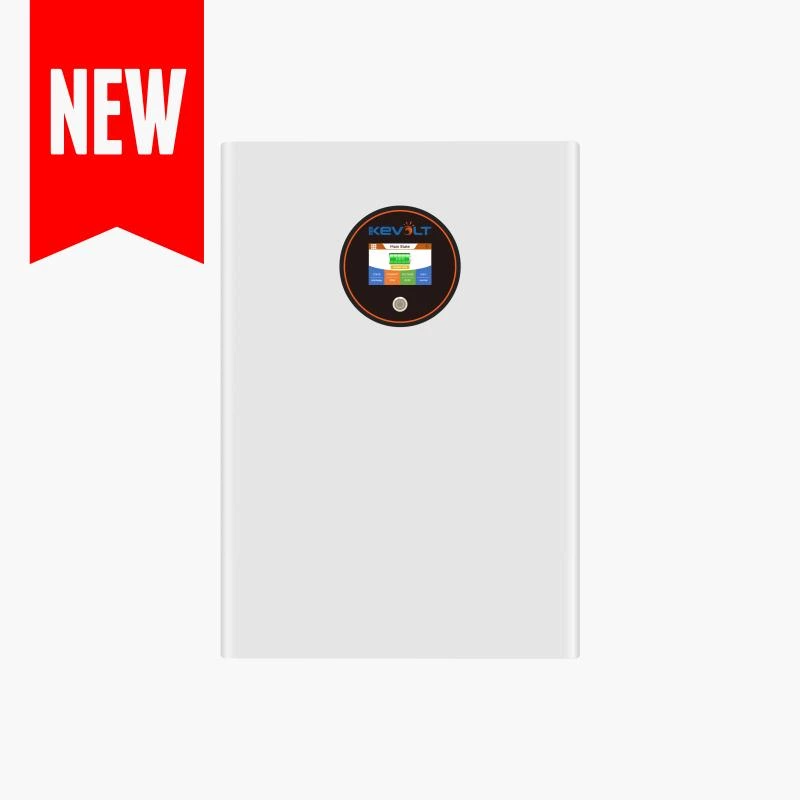

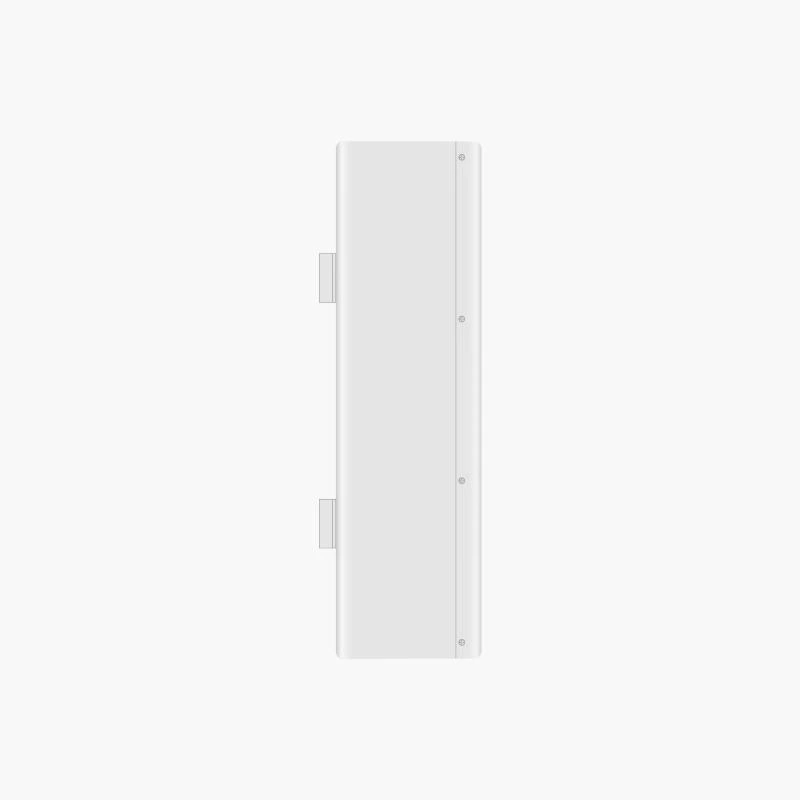

51.2V 100Ah Wall Mounted Battery
1. 10-year product warranty.
2. Grade A battery with a lifespan of 6000 charge/discharge cycles.
3. Reinforced battery compartment design.
4. Utilizes laser welding technology.
5. Intelligent Battery Management System (BMS).
6. Color touchscreen display.
7. Wall-mountable design for easy installation.
8. Compatible with over 95% of inverters.
9. Supports parallel connection of up to 15 units.
10. OEM/ODM customization services available.
kevolt's online shop：www.greensystem.en.alibaba.com / www.kevolt.en.alibaba.com
Why Choose Our Products
1. Our products come with a 10-year warranty because we have absolute confidence in them!
2. Using brand new, A-grade lithium iron phosphate battery cells, with a 0.5C 80% DOD cycle life of up to 6000 cycles. You can scan the QR code on our website to verify authenticity and trace the product's origin!
3. Reinforced battery compartment design for superior stability.
4. Laser welding technology ensures a sleek, elegant design and long-lasting durability.
5. Equipped with a smart BMS battery management system, which monitors voltage, current, and temperature in real time, ensuring stable voltage and current, and preventing short circuits, overcharging, and over-discharging.
6. Features a 3.5-inch touchscreen – larger screen, stronger waterproof and dustproof performance, and longer lifespan.
7. Wall-mounted design for easy installation.
8. Compatible with 95% of inverter brands.
9. Supports parallel connection of up to 15 units, with a maximum total capacity of 76.8kWh.
10. OEM/ODM services available.
| Model Capacity | KVF100Ah-LV |
| Battery Type | LiFePO4 |
| Capacity Energy | 5.12kWh |
| Capacity（Ah） | 100Ah |
| Battery Pack Type | 16S1P |
| Suggested SOC | 20~100% |
| Nominal Voltage | 51.2V |
| Operation Voltage | 46.4~57.6V |
| Max Charging/Discharging Current | 50A |
|
Max Charge Current
|
80A |
|
Max Discharge Current
|
80A |
| Parallel Quantity | Max 15 Units |
|
Cycle Life
|
6000 Cycles @25℃, 80%DOD
|
|
Operating Temperature
|
Charge: 0~50℃, Discharge: -20~60℃
|
| Dimensions |
640*445*180mm
|
| Net Weight | 57.5kg |
| IP Grade | IP21 |
| Installation Method | Wall Mounted |
| Communication | RS232, RS485, CAN |
| Warranty | 10 Years |
|
Customizable Item
|
Capacity, Panel Pattern, LOGO, Packaging
|
