PRODUCT

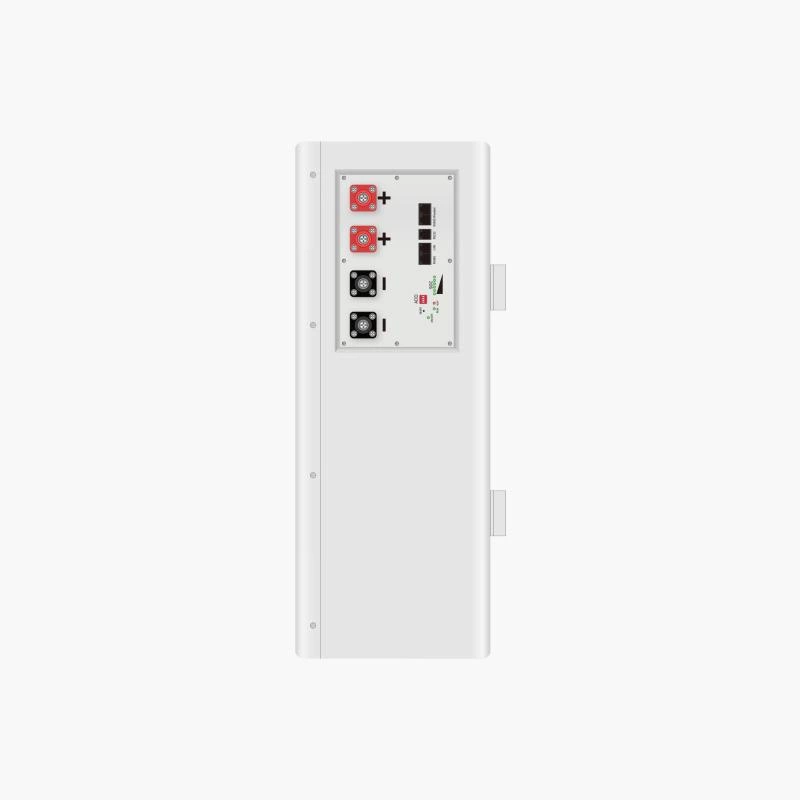

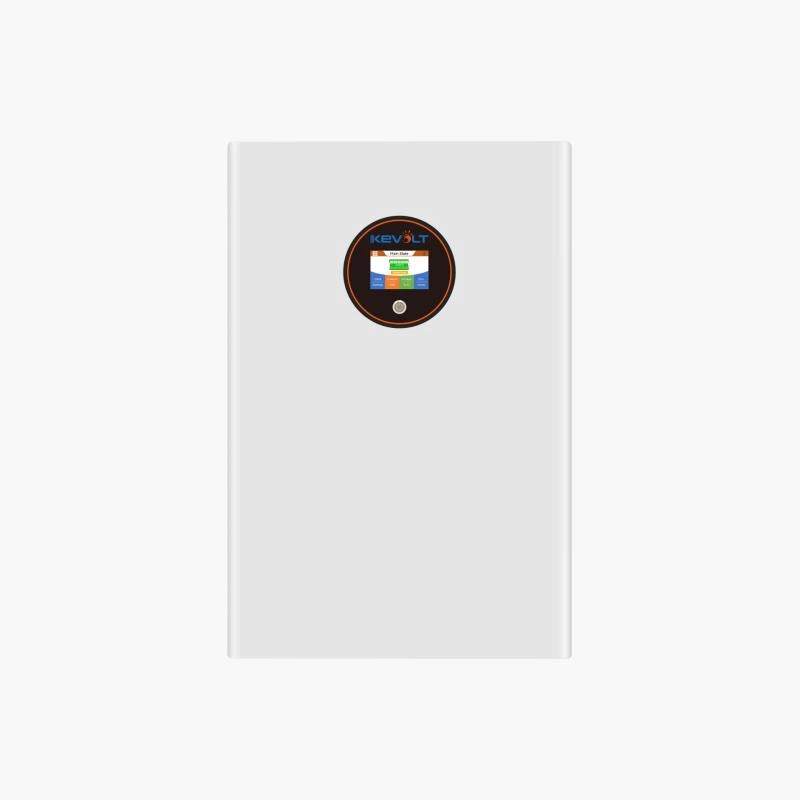

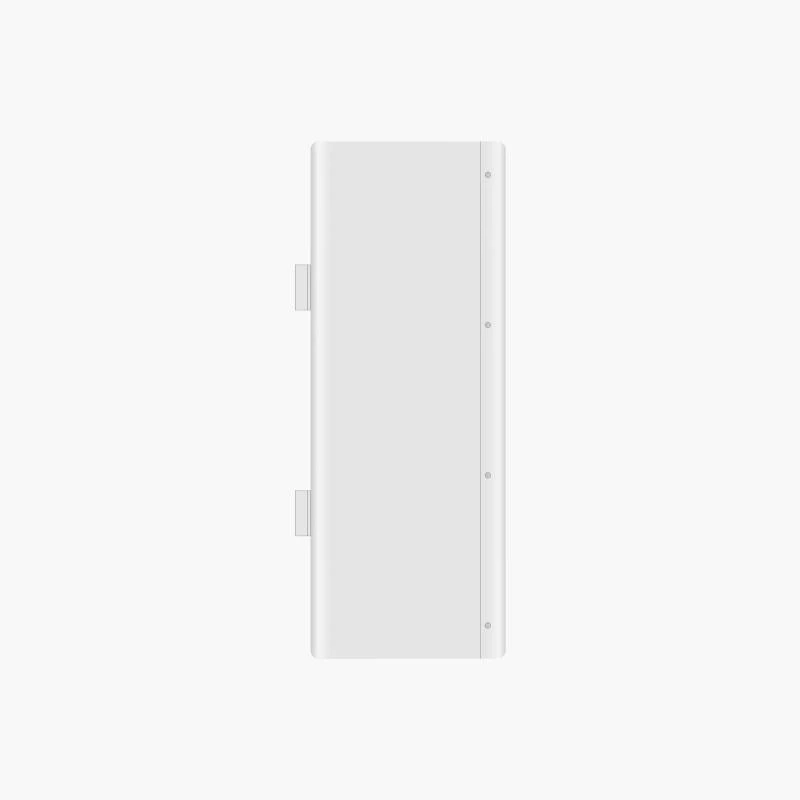

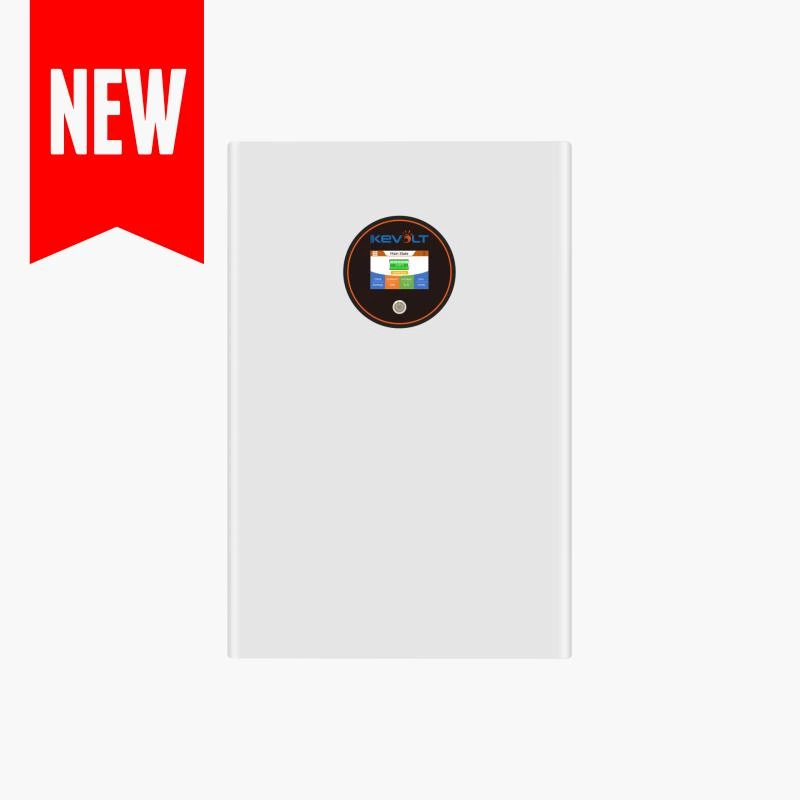

51.2V 200Ah Wall and Floor Mounted Battery
1. 10-year product warranty.
2. Grade A battery with a lifespan of 8000 charge/discharge cycles.
3. Reinforced battery compartment design.
4. Laser welding technology.
5. Intelligent Battery Management System (BMS).
6. 3.5-inch color touchscreen.
7. Wall-mounted installation.
8. Compatible with 95% of inverters.
9. Supports parallel connection of up to 15 units.
10. OEM/ODM customization services available.
kevolt's online shop:www.greensystem.en.alibaba.com / www.kevolt.en.alibaba.com
Why Choose Our Products
1. We are so confident in our product quality that we offer a 10-year warranty!
2. Equipped with brand new, high-quality A-grade lithium iron phosphate batteries, boasting a cycle life of up to 6000 cycles (0.5C, 80% DOD). Scan the QR code to verify product authenticity and track its origin on our official website!
3. Reinforced battery compartment design ensures superior product stability.
4. Laser welding technology results in a sleek, elegant design and enhanced durability.
5. The intelligent BMS system monitors voltage, current, and temperature in real time, ensuring stable voltage and preventing short circuits, overcharging, and over-discharging.
6. Features a 3.5-inch touchscreen with a larger screen, improved water and dust resistance, and longer lifespan.
7. The built-in connector design significantly enhances product safety and aesthetics.

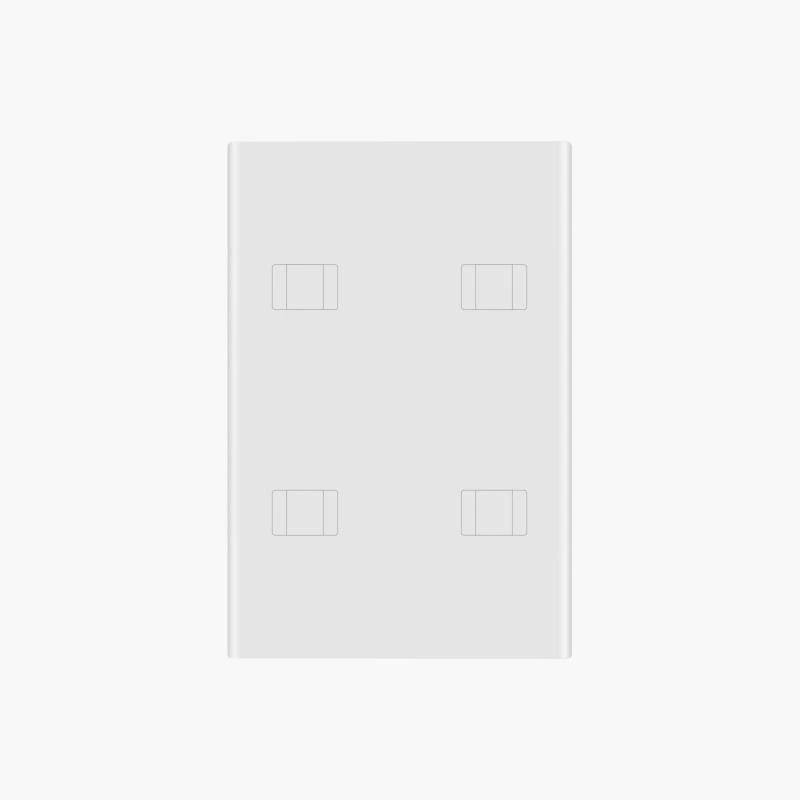

8. Wall-mountable design accommodates various installation scenarios.
9. Compatible with over 95% of inverter brands.
10. Supports parallel connection of up to 15 units, with a maximum total capacity of 15.36kWh.
11. OEM/ODM customization services available.
Wall Mounted Battery | |
Model Capacity |
KVF200Ah-LV
|
Battery Type | LiFePO4 |
Capacity Energy | 10.24kWh |
Capacity(Ah) | 200Ah |
Battery Pack Type | 16S1P |
Suggested SOC | 20~100% |
Nominal Voltage | 51.2V |
Operation Voltage |
46.4~57.6V
|
Suggest Charge/Discharge Current
|
80A
|
Max Charge/Discharge Current
|
120A
|
Parallel Quantity | Max 15 Units |
Cycle Life
|
6000 Cycles @25℃, 80%DOD
|
Dimensions |
690*460*260mm
|
Net Weight | 98kg |
IP Grade | IP21 |
Installation Method | Wall Mounted |
Communication | RS232, RS485, CAN |
Warranty | 10 Years |
Customizable Item
|
Capacity, Panel Pattern, LOGO, Packaging
|
