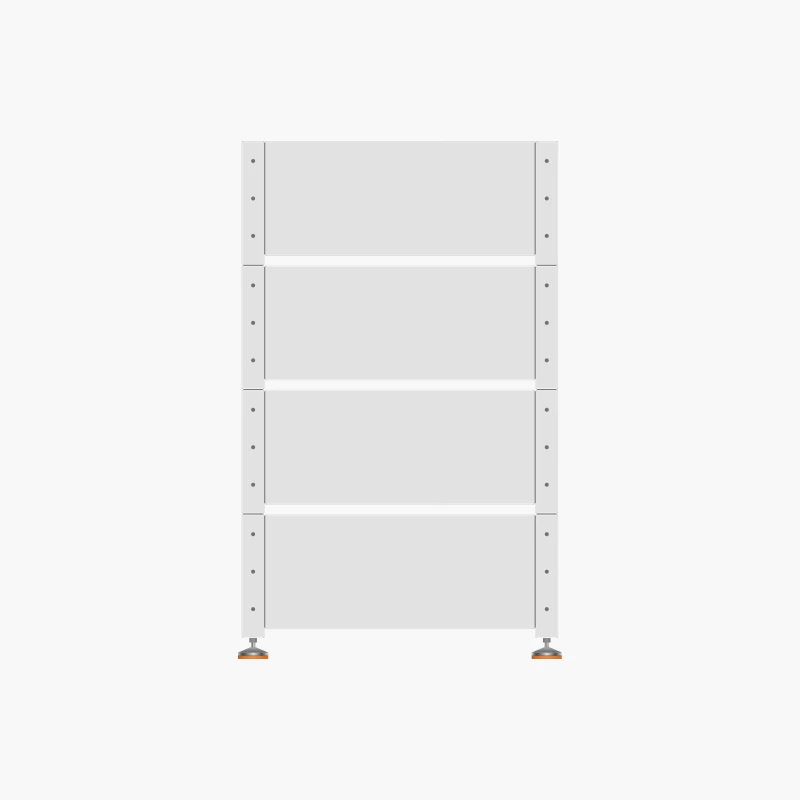

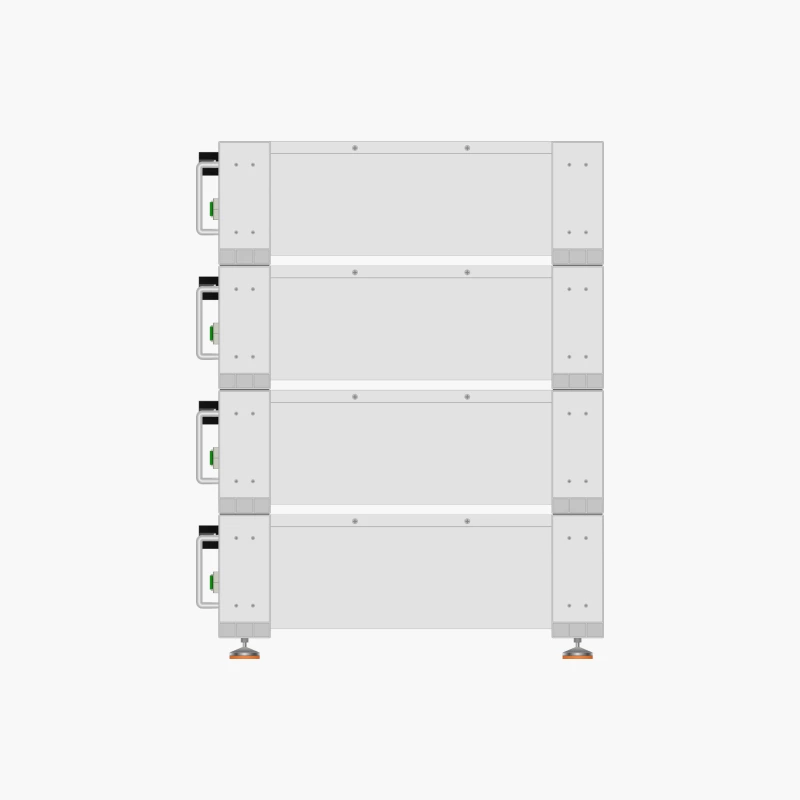

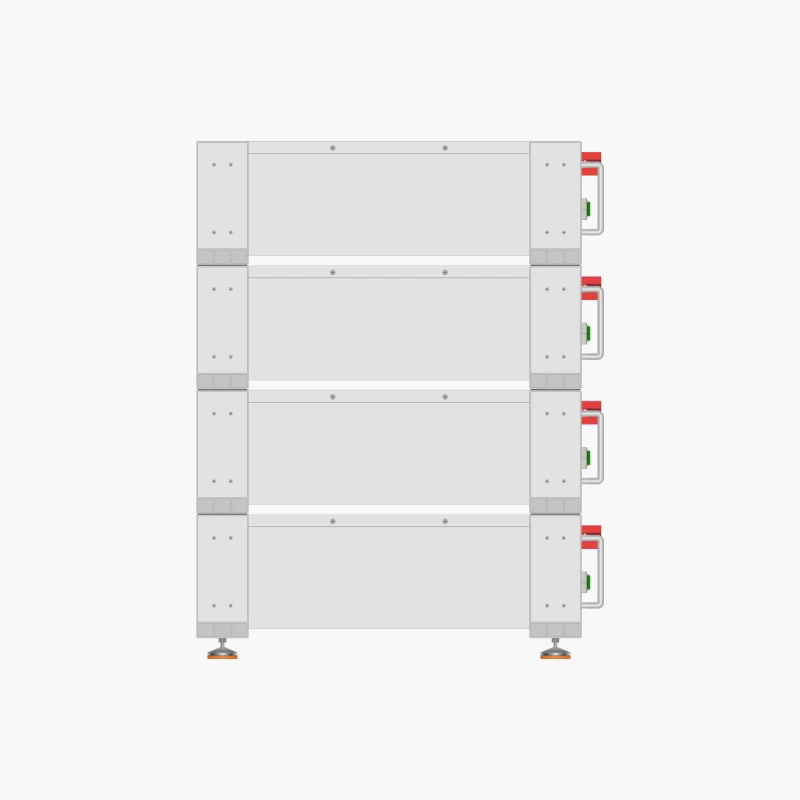

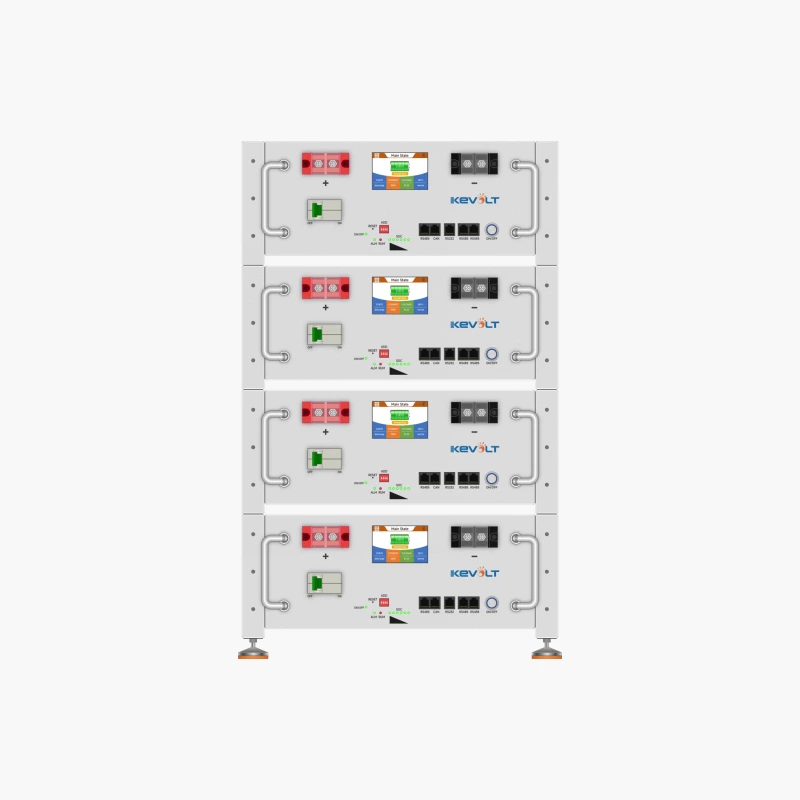

5-230kWh Rack Mounted Battery ( 51.2V 100/200/314Ah Module IP54 Bluetooth and Wi-Fi )
- A Grade Lithium-Ion Cells
- Max 8000 Cycles Life
- 3.5 in. Color Touch Screen
- 2-15 Units Parallel
- 10 Years Warranty
- ODM / OEM
Why Choose Our Products
1. Guarantee: Official genuine product guarantee, 10-year warranty, replacement for damage or malfunction.
2. Service: 24-hour online installation training, on-site engineer service for bulk orders, OEM/ODM.
3. Battery Cells: Grade A lithium-ion cells, 22-year lifespan, QR code verification available.
4. BMS: Intelligent monitoring of voltage, current, and temperature to prevent short circuits, overcharging, and over-discharging.
5. Craftsmanship: Laser welding technology and three-layer reinforced design for stable and reliable operation.
6. Screen: 3.5-inch color touchscreen, simple and easy to use.
7. Ports: 2 positive terminals, 2 negative terminals.
8. Installation: Removable support bracket, easy to install, saves transportation costs.
9. Parallel Operation: Up to 15 units can be paralleled, with a total capacity of 16-241kWh.
10. Compatibility: 95% of brand inverters.
11. Applications: Homes, shops, farms, communities, warehouses, factories, hospitals, schools.
|
Model
|
51.2V100Ah
|
51.2V200Ah
|
51.2V314Ah
|
|
Battery Type
|
A Grade LiFePO4 Battery Cells | ||
|
Nominal Capacity
|
100Ah
|
200Ah | 314Ah |
|
Nominal Voltage
|
51.2V
|
||
|
Nominal Energy
|
51.2kWh
|
10.24kWh | 16.08kWh |
|
Suggested SOC
|
20~100%（customized）
|
||
|
Operating Voltage
|
46.4~57.6V
|
||
|
Suggest Charge/Discharge Current
|
50A
|
80A | 140A |
|
Max Charge Current
|
80A
|
120A | 200A |
|
Max Discharge Current
|
80A
|
120A | 200A |
|
Scalability
|
Max 15 Pcs Park in Parallel
|
||
|
Cycle Life (@25℃, 80%DOD)
|
6000
|
8000 | |
|
Humidity
|
5%-85%
|
||
|
Operating Temperature
|
Charge: 0~50℃, Discharge: -20~60℃
|
||
|
Weight
|
42.4kg
|
83.9kg
|
112.95kg
|
|
Dimensions
|
535x420x153mm
|
600x380x240mm
|
735x380x240mm
|
|
Installation Method
|
Rack Mounted
|
||
|
IP Grade
|
IP21
|
||
|
Communication
|
RS485, RS232,CAN
|
||
|
Warranty
|
10 Years
|
||
