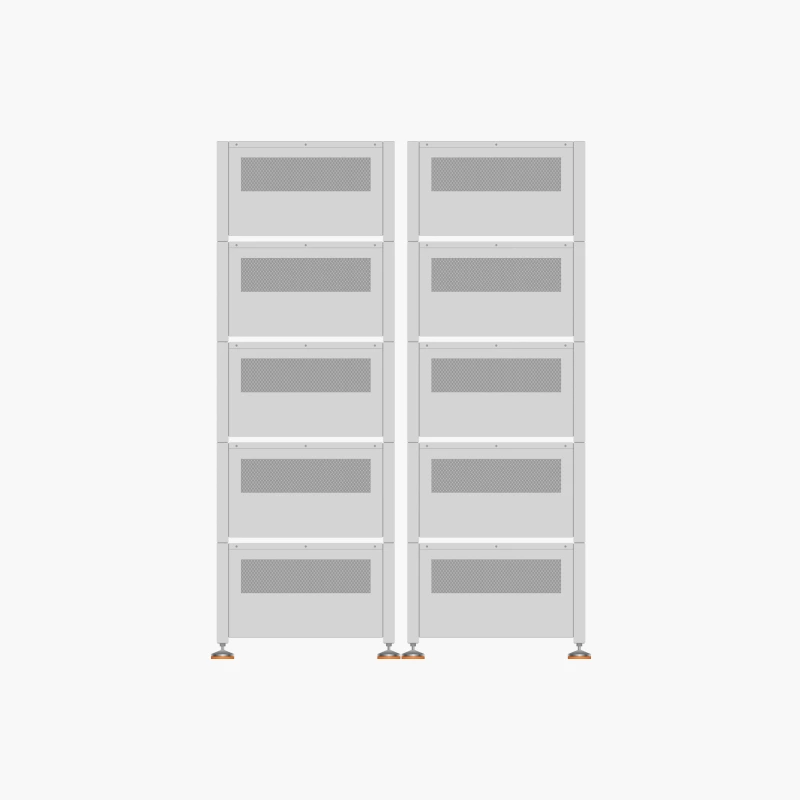

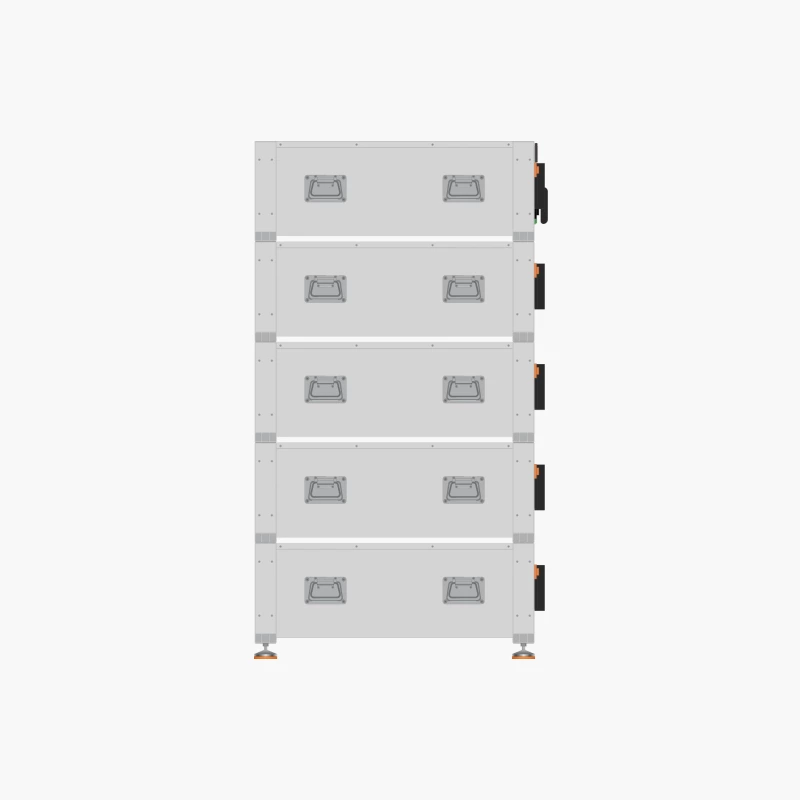

65-241kWh High Voltage Rack Battery ( 51.2V 314Ah Module )
- A Grade Lithium-Ion Cells
- 8000 Cycles Life
- 4.3 in. Color Touch Screen
- 2-15 Units in Series
- 10 Years Warranty
- ODM / OEM
Why Choose Our Products
1. This product comes with a 10-year warranty because we have complete confidence in it!
2. Utilizes brand-new A Grade lithium iron phosphate batteries, with a maximum cycle life of 8000 cycles (0.5C 80% DOD). You can scan the QR code on the official website to verify authenticity and trace the product's origin!
3. Independent battery compartment structure design with triple reinforcement for superior stability.
4. Employs advanced technologies such as laser welding, resulting in a simple, aesthetically pleasing, and durable design.
5. Equipped with an intelligent high-voltage BMS, it monitors voltage, current, and temperature in real time, protecting voltage and current stability and preventing short circuits, overcharging, and over-discharging.
6. 4.3-inch touchscreen, offering a larger screen, better waterproof and dustproof performance, and a longer lifespan.
7. Features Wi-Fi functionality for remote monitoring of the device anytime, anywhere.
8. Rack-mount design for easy installation and space saving.
9. Compatible with 95% of inverter brands on the market.
10. Supports 15 devices connected in parallel, with a maximum total capacity of 241kWh.
11. Supports OEM/ODM.
| Model | 51.2V314Ah | |||||
| Battery Type | A Grade LiFePO4 Battery Cells | |||||
| Battery Module |
16.08kWh, 314Ah, 51.2V, 112kg, 477*246.5*700mm
|
|||||
| Control Box |
477*246.5*700mm, 22kg, 232V~980V , 200A
|
|||||
| Number of Modules | 5 | 6 | 7 | 8 | 9 | 10 |
| Normal Rated Voltage | 256V | 307.2V | 358.4V | 409.6V | 460.8V | 512V |
| Operating Voltage | 46.4*Number of modules~57.6*Number of modules | |||||
| Normal Energy | 80.38 kWh | 96.46 kWh | 112.54 kWh | 128.61 kWh | 144.69 kWh | 160.77 kWh |
| Suggested SOC | 20~100%（customized） | |||||
| Maximum Current | 200A | |||||
|
Parallel Quantity
|
Max 15 Units
|
|||||
| Maximum Power |
10240W*Number of Battery Modules
|
|||||
| Storage Temperature | ≤25℃, 12 Months ≤35℃, 6 Months ≤45℃, 3 Months | |||||
| Humidity | 5-85%RH | |||||
| Operating Altitude | <2000m | |||||
| Cycle Life | 8000 Cycles @25℃, 80%DOD | |||||
| Working Temperature | -10~55℃ | |||||
| Net Weight (kg) |
640
|
748 | 856 | 964 | 1072 | 1180 |
| Installation Method | Rack Mounted | |||||
| Remote Monitoring | WIFI | |||||
| IP Grade | IP20 | |||||
| Communication | RS485, CAN | |||||
| Warranty | 10 Years | |||||
| Cooling Mode | Fan Cooling | |||||
