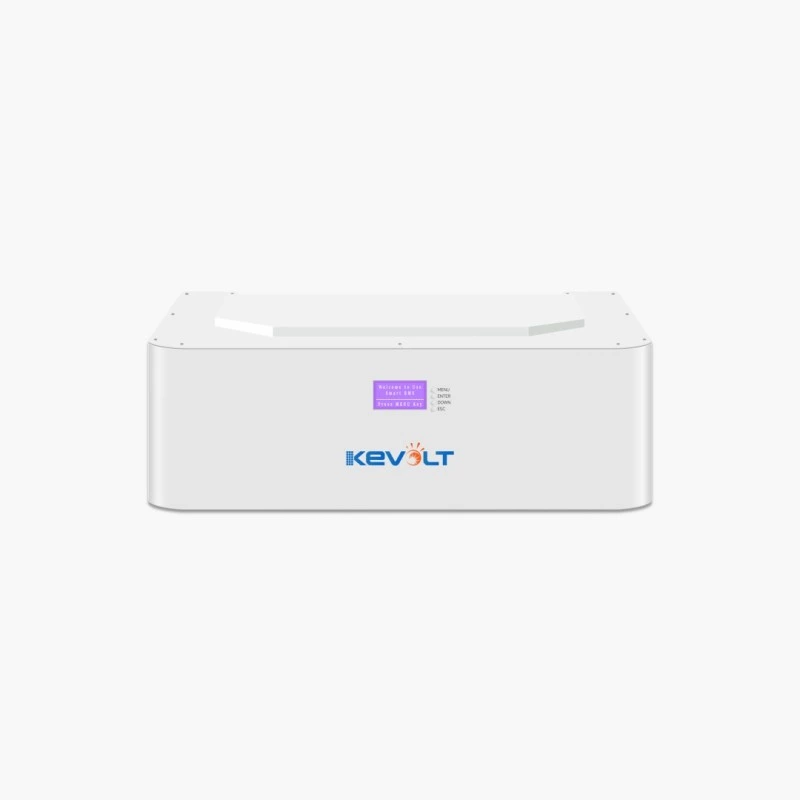

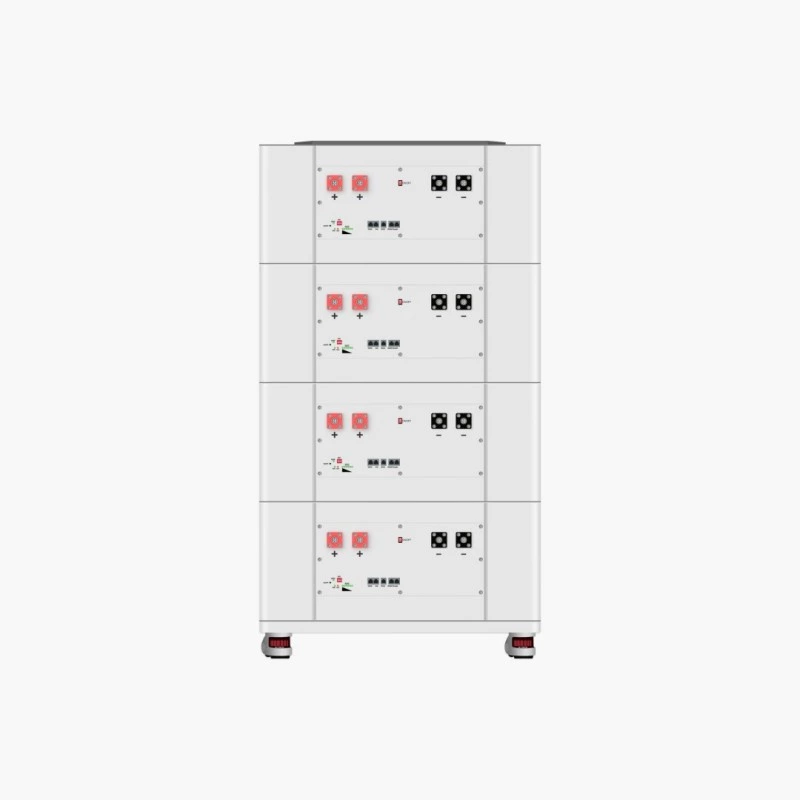

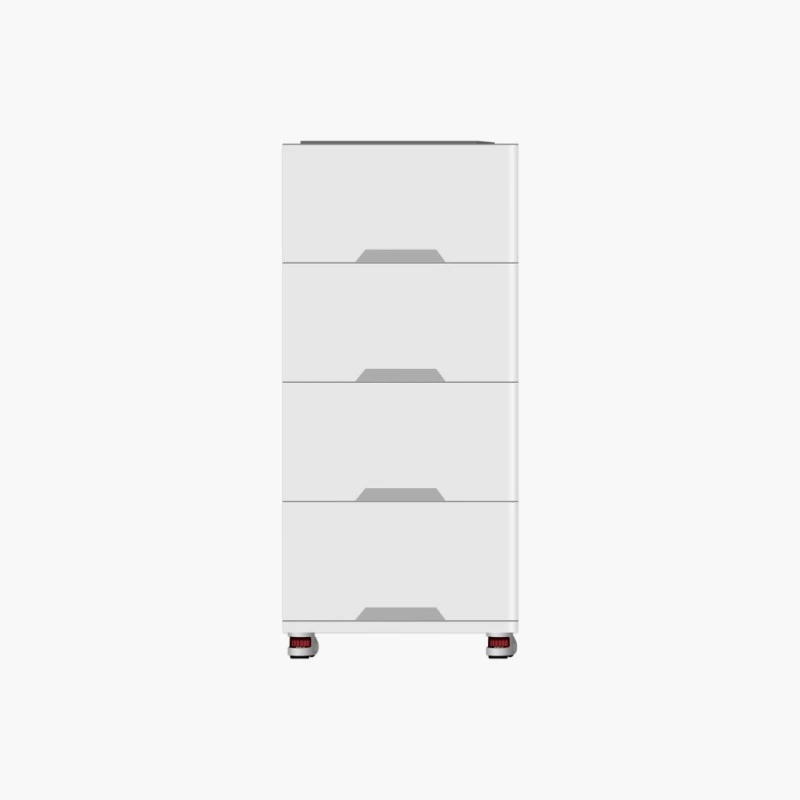

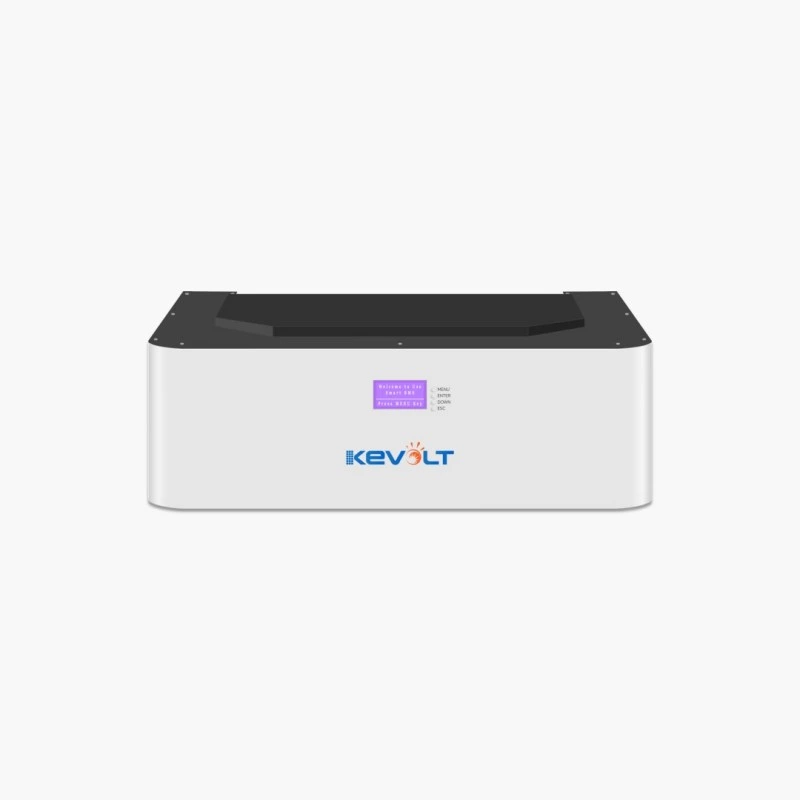

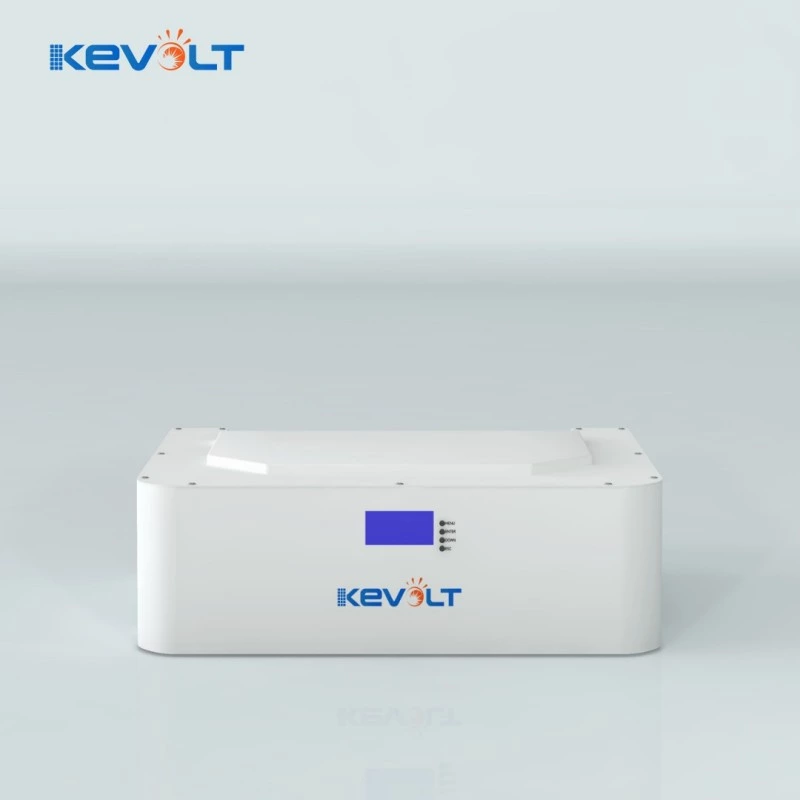

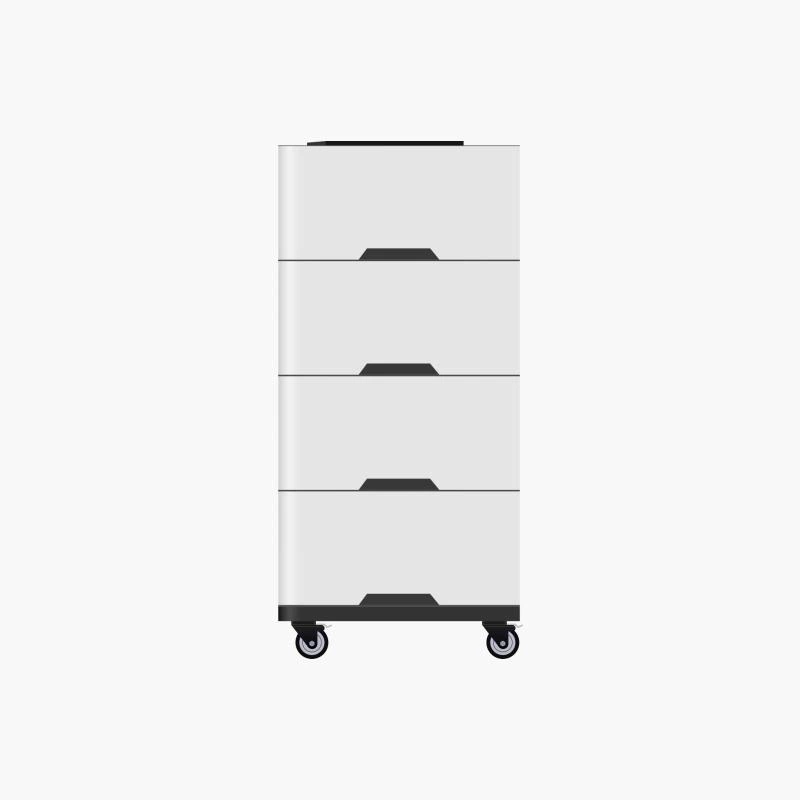

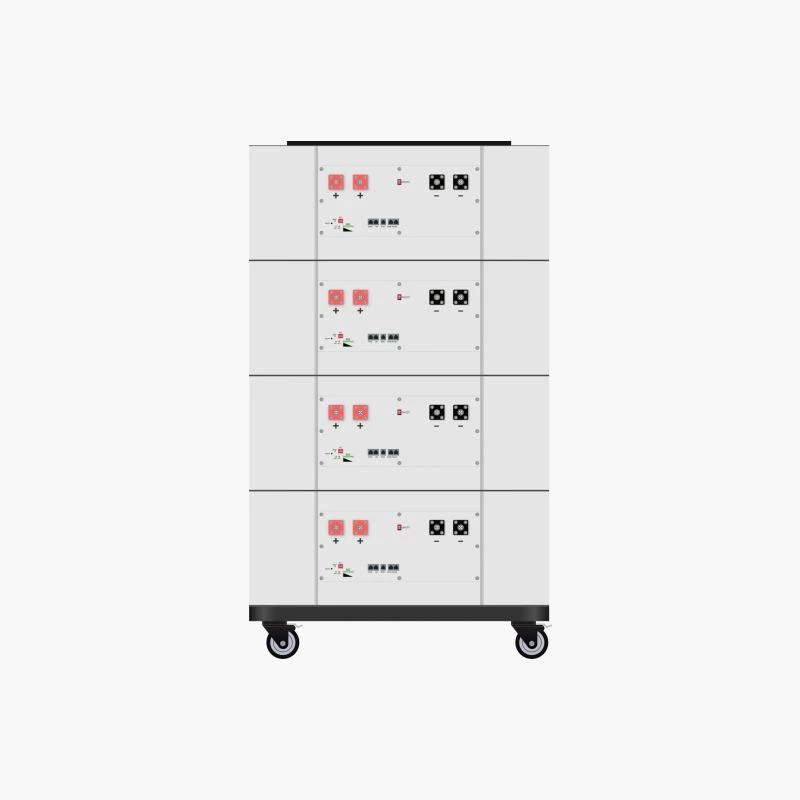

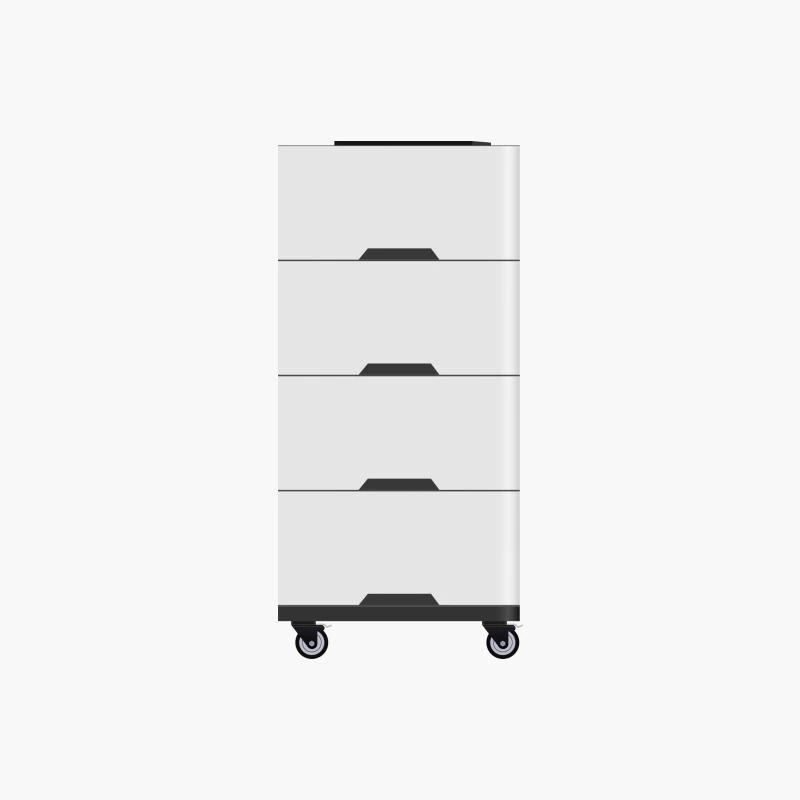

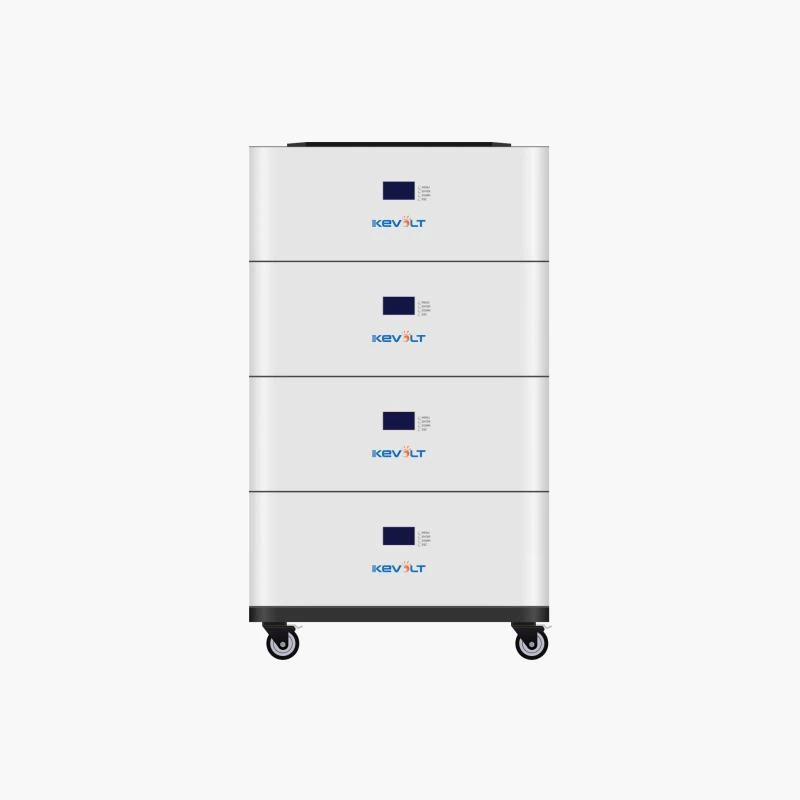

5-230kWh Stacked Battery ( 51.2V 100/200/314Ah Module )
- A Grade Lithium-Ion Cells
- 6000 Cycles Life
- 3.5 in. Color Touch Screen
- 2-15 Units Parallel
- 10 Years Warranty
- ODM / OEM
View More
Why Choose Our Products
1. The product provides a 10-year warranty.
2. A grade battery, 6000 cycles.
3. Laser welding process.
4. Intelligent BMS protection.
5. Large inventory.
6. Simple stacking installation design.
7. Compatible with 95% brand inverters.
8. Support 15 devices in parallel.
9. Support OEM/ODM.
|
Model
|
51.2100-DD-LIFEPO4 5K
|
51.2200-DD-LIFEPO4 10K
|
51.2314-DD-LIFEPO4 15K
|
|
Battery Type
|
A Grade LiFePO4 Battery Cells | ||
|
Nominal Capacity
|
100Ah
|
200Ah | 314Ah |
|
Nominal Voltage
|
51.2V
|
||
|
Nominal Energy
|
51.2kWh
|
10.24kWh | 16.08kWh |
|
Suggested SOC
|
20~100%（customized）
|
||
|
Operating Voltage
|
46.4~57.6V
|
||
|
Suggest Charge/Discharge Current
|
50A
|
100A | 157A |
|
Max Charge Current
|
80A
|
120A | 200A |
|
Max Discharge Current
|
80A
|
120A | 200A |
|
Scalability
|
Max 15 Pcs Park in Parallel
|
||
|
Cycle Life
|
6000 @25℃, 80%DOD
|
||
|
Humidity
|
5%-85%
|
||
|
Operating Temperature
|
Charge: 0~50℃, Discharge: -20~60℃
|
||
|
Weight
|
46kg
|
86kg
|
114.4kg
|
|
Dimensions
|
630*440*200mm
|
670*460*280mm
|
690*500*246mm
|
|
Installation Method
|
Stacked Mounted
|
||
|
IP Grade
|
IP21
|
||
|
Communication
|
RS485, RS232,CAN
|
||
|
Warranty
|
10 Years
|
||
