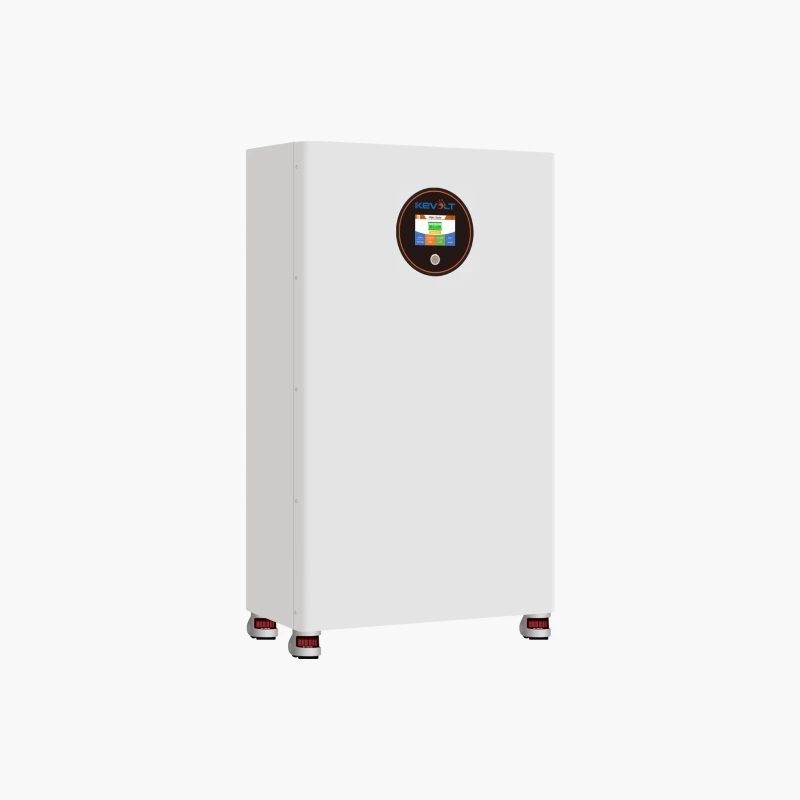

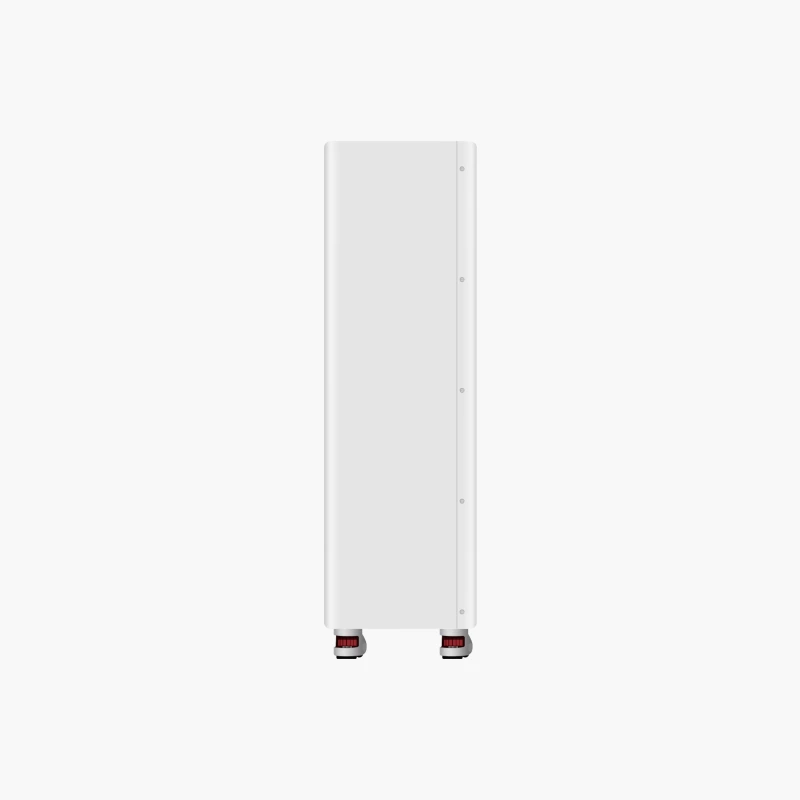

16.08kWh Floor Mounted Battery ( 51.2V 314Ah Module )
- A Grade Lithium-Ion Cells
- 8000 Cycles Life
- 3.5 in. Color Touch Screen
- 2-15 Units Parallel
- 10 Years Warranty
- ODM / OEM
Why Choose Our Products
1. Our products are guaranteed for 10 years, because we are absolutelyconfident in our products!
2.Adopts the new A grade lithium iron phosphate cell, up to 8000Cycles @ 0.5C 80%D0D, can scan the QR code official website to verifythe authenticity, trace the source!
3. Equipped with intelligent BMS, real-time monitoring voltage, current.temperature, protect voltage, current stability, prevent short circuit,overcharge and overdischarge.

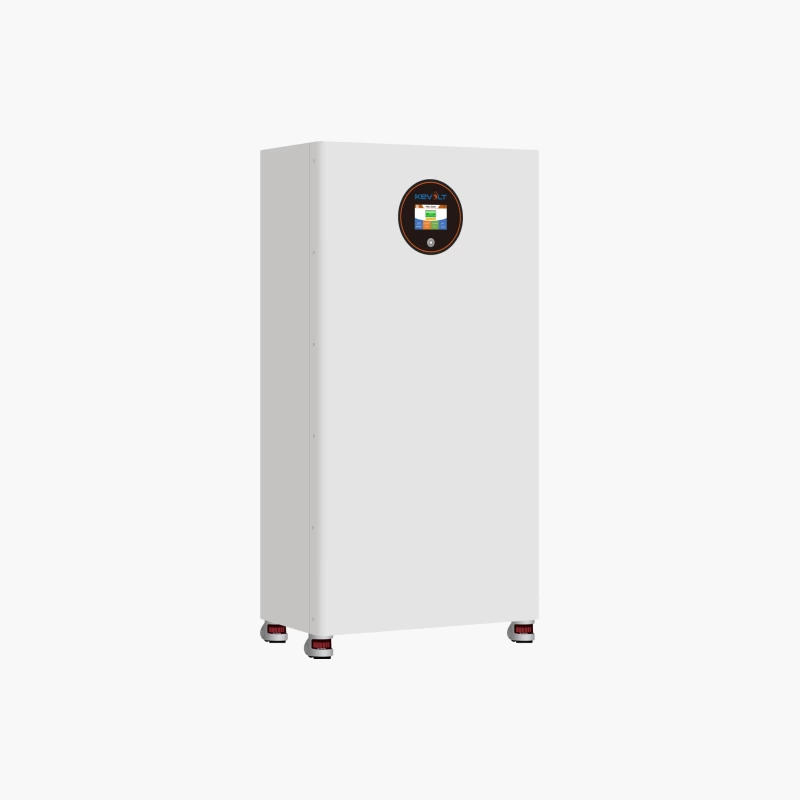

4. Uses 3.5-inch touch screen, larger screen, better water and dustresistance and longer service life.

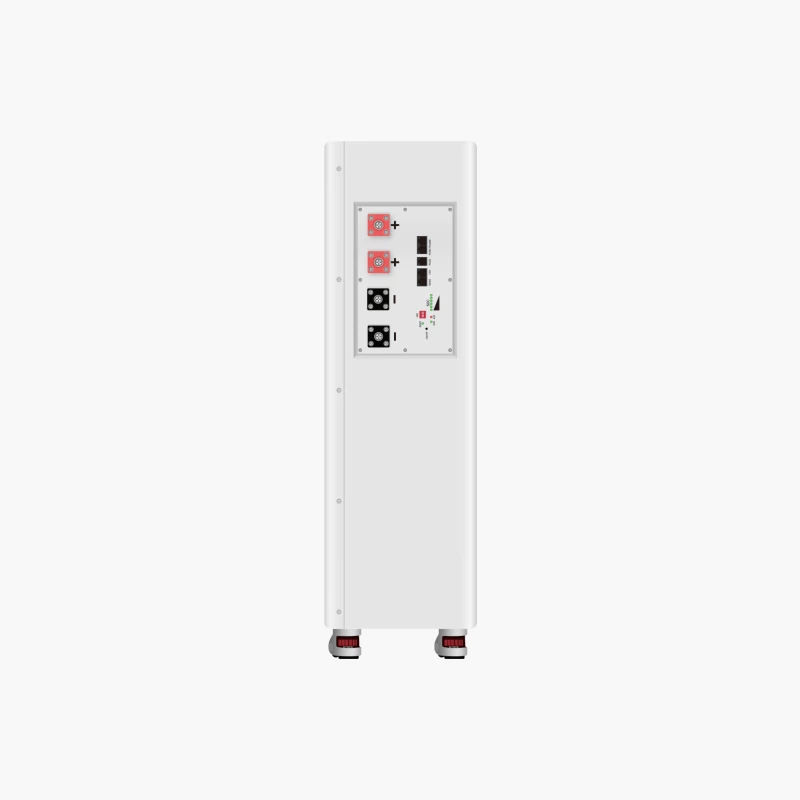

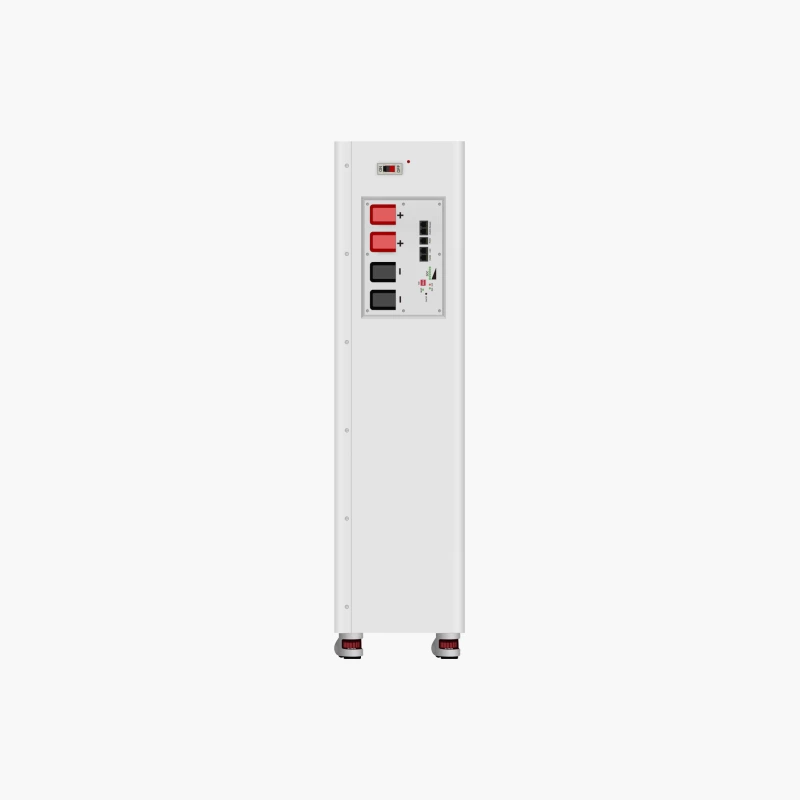

5. The built-in connector design greatly improves security, protection, andaesthetics.

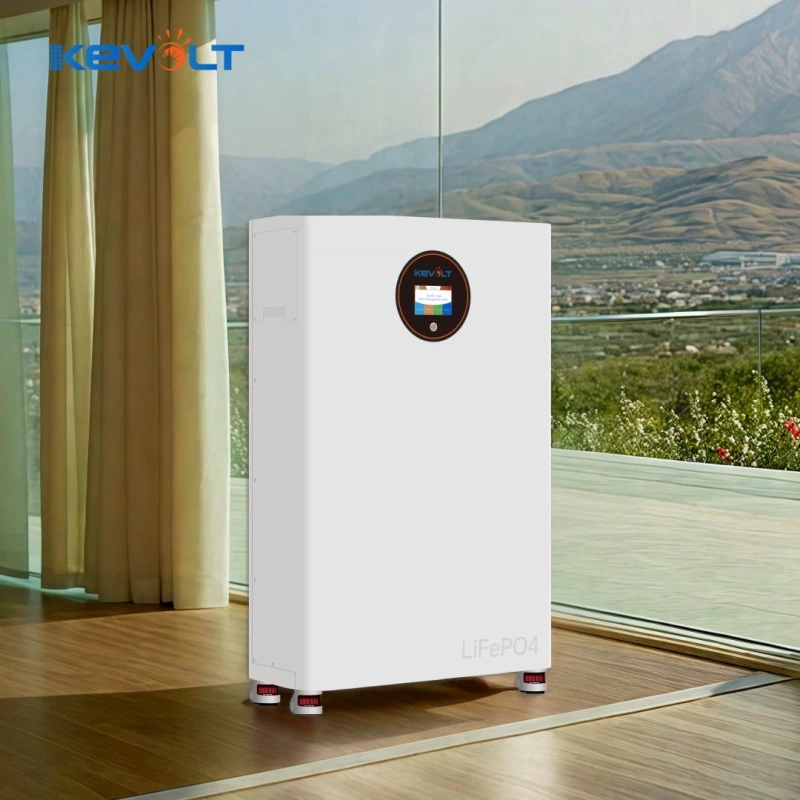

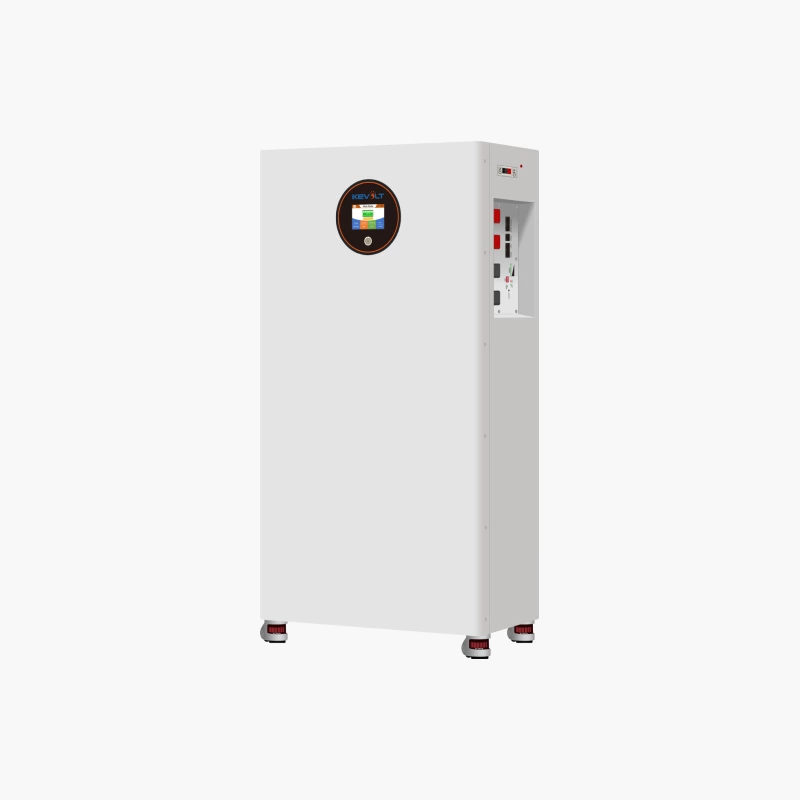

6. Floor-to-ceiling design with 360-degree universal wheels for easymovement and installation.
7. Compatible with 95% of inverter brands.
8. Supports 15 devices in parallel with a maximum total capacity of215.04kWh.
9. 0EM/0DM supported
| Floor Mounted Battery | |
|
Model
|
KVP314Ah-LV
|
| Battery Type | A Grade LiFePO4 Battery Cells |
| Capacity (Ah) | 314Ah |
| Energy Capacity | 16.08kWh |
|
Suggested SOC
|
20~100%（customized）
|
| Normal Voltage | 51.2V |
|
Suggest Charge/Discharge Current
|
157A
|
|
Max Charge/Discharge Current
|
200A
|
|
Parallel Quantity
|
Max 15 Pcs Park in Parallel
|
|
Cycle Life
|
8000 Cycles @25℃, 80%DOD
|
|
Operating Temperature
|
Charge: 0~50℃, Discharge: -20~60℃
|
| Dimension | 520*260*910mm |
| Weight | 142kg |
|
Installation Method
|
Floor Mounted
|
| Communication Port | RS485, CAN, RS232 |
| Warranty | 10 Years |
|
Customizable Item
|
Capacity, Panel Pattern, LOGO, Packaging
|
