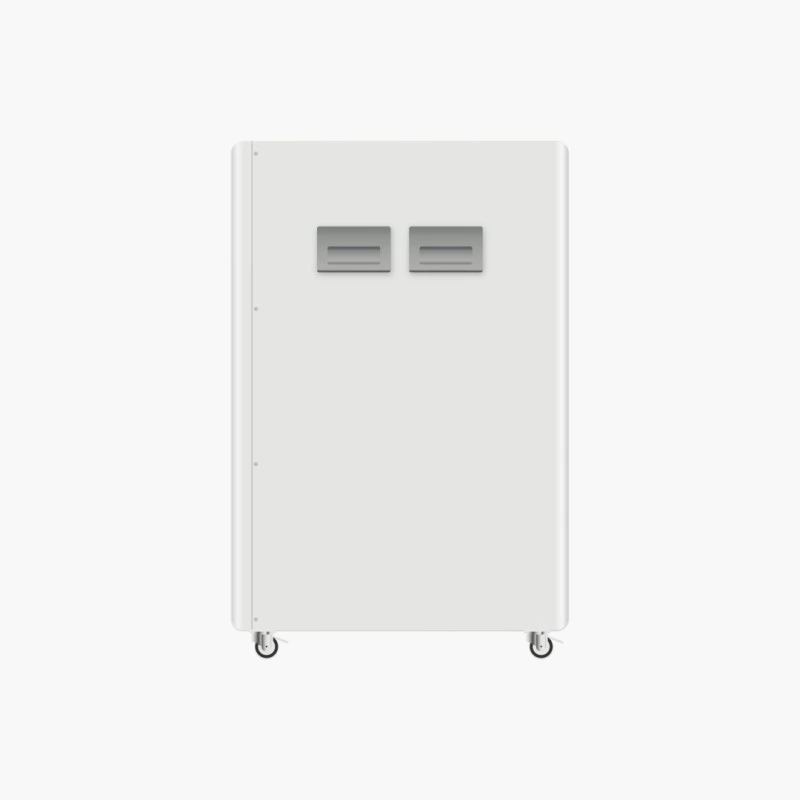

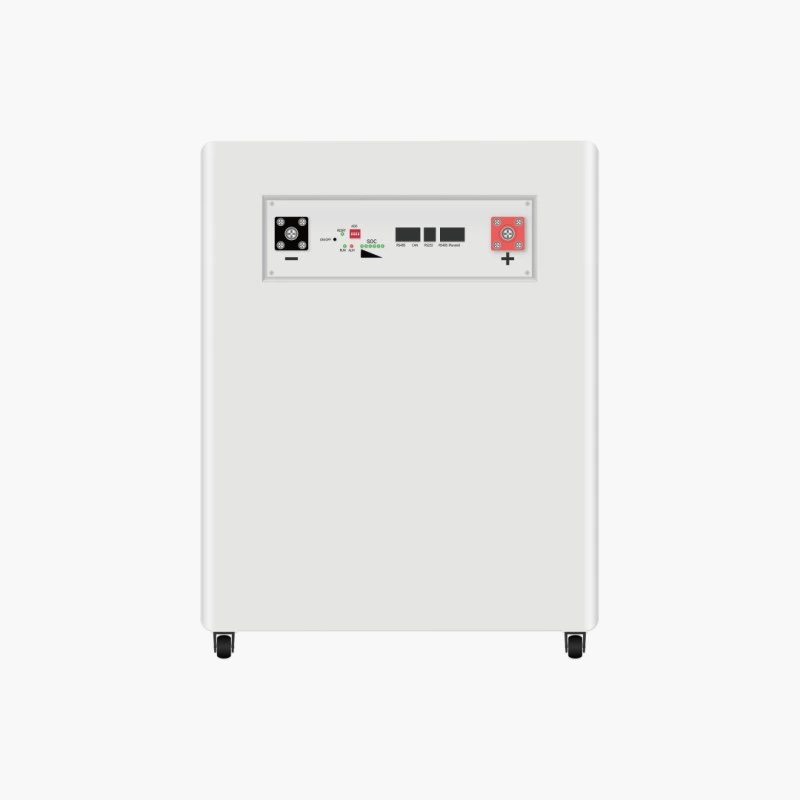

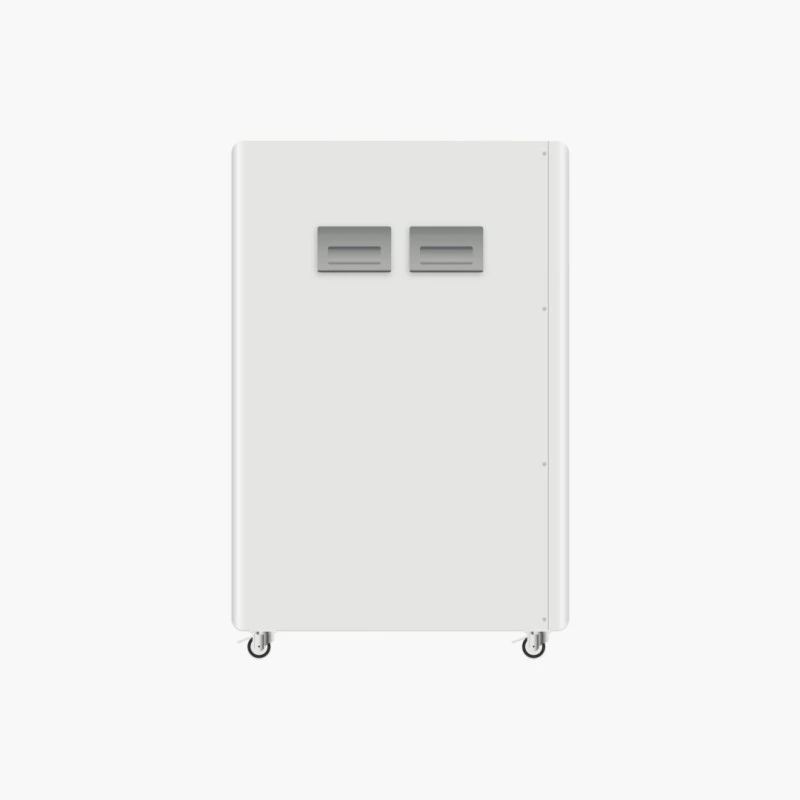

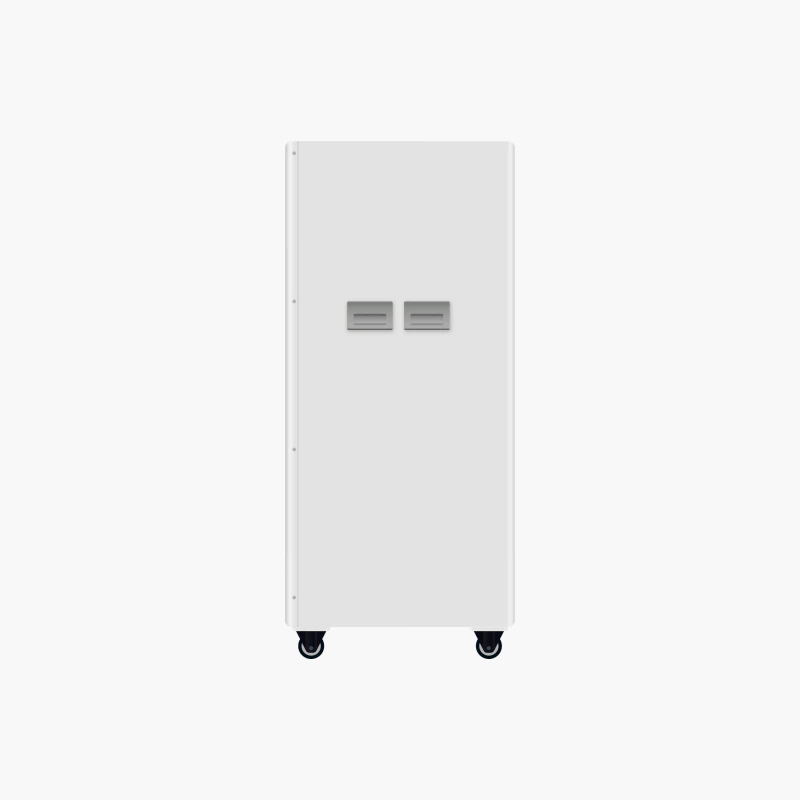

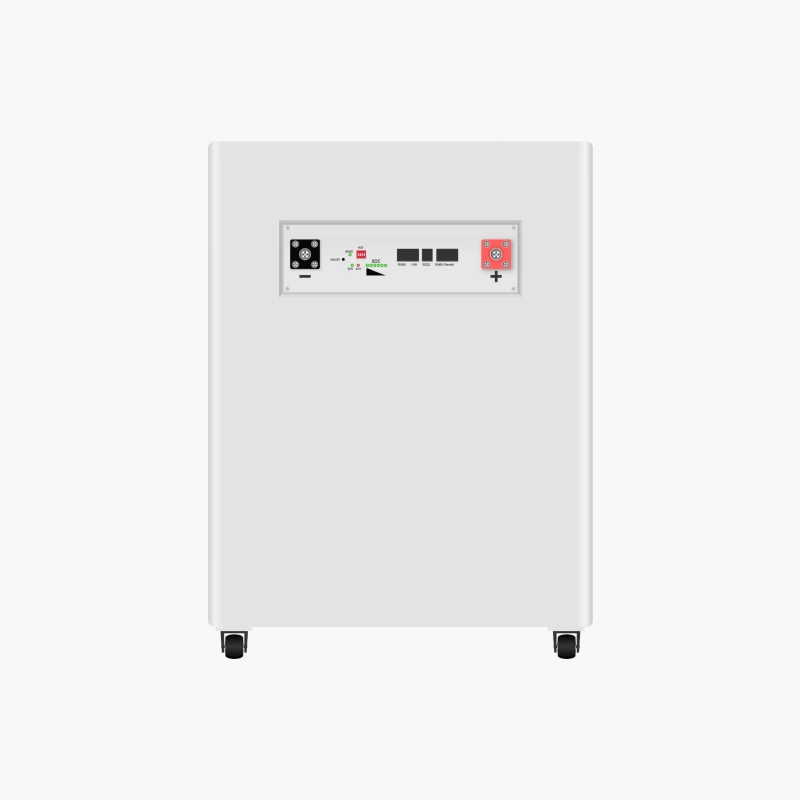

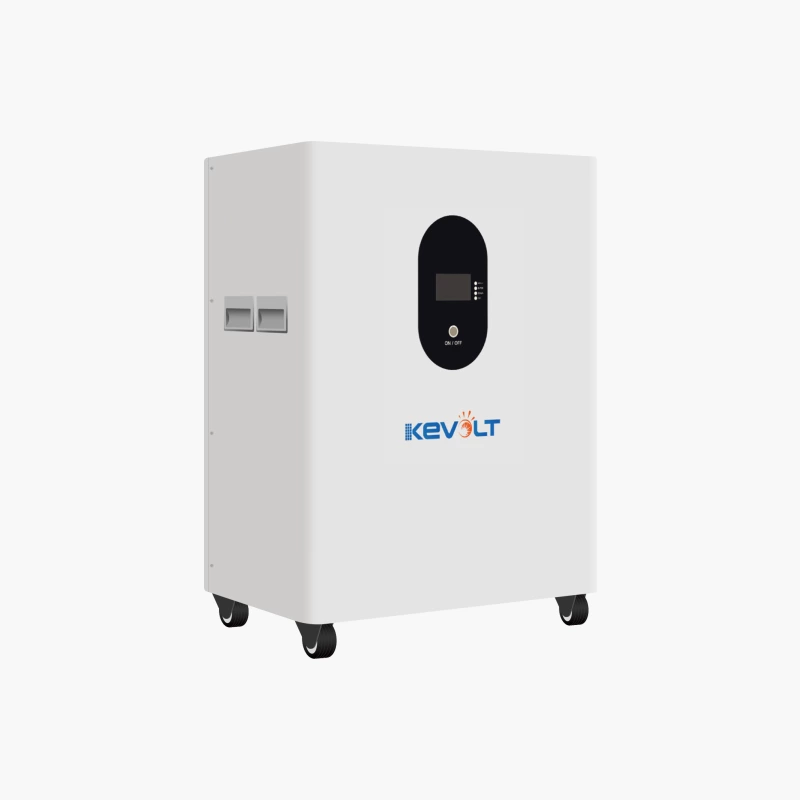

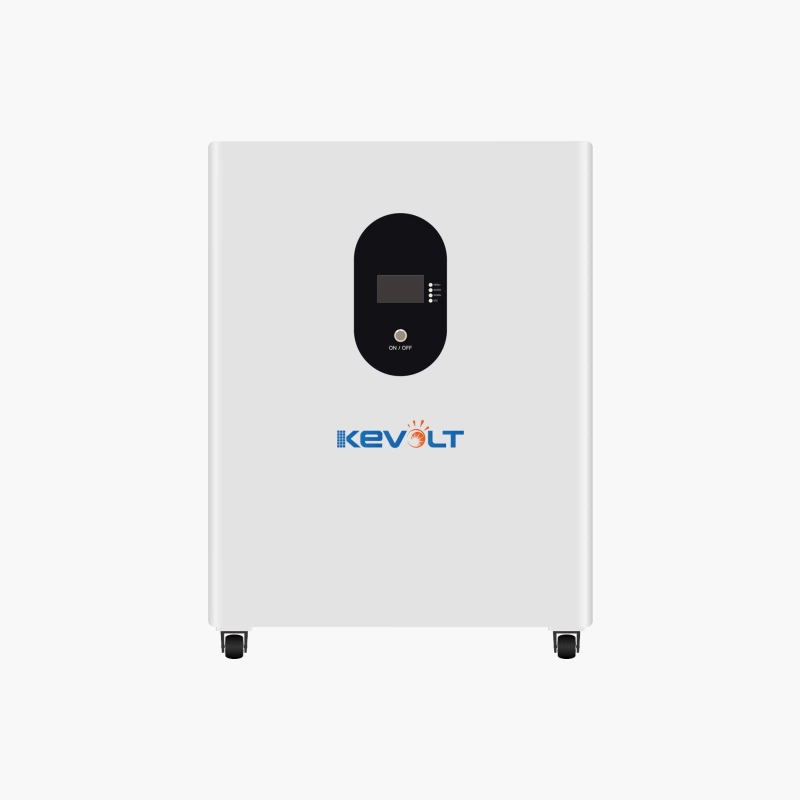

51.2V 300Ah/400Ah Floor Mounted Battery
1. The product provides a 10-year warranty.
2. Class A battery, 6000 cycles.
3. Laser welding process.
4. Intelligent BMS protection.

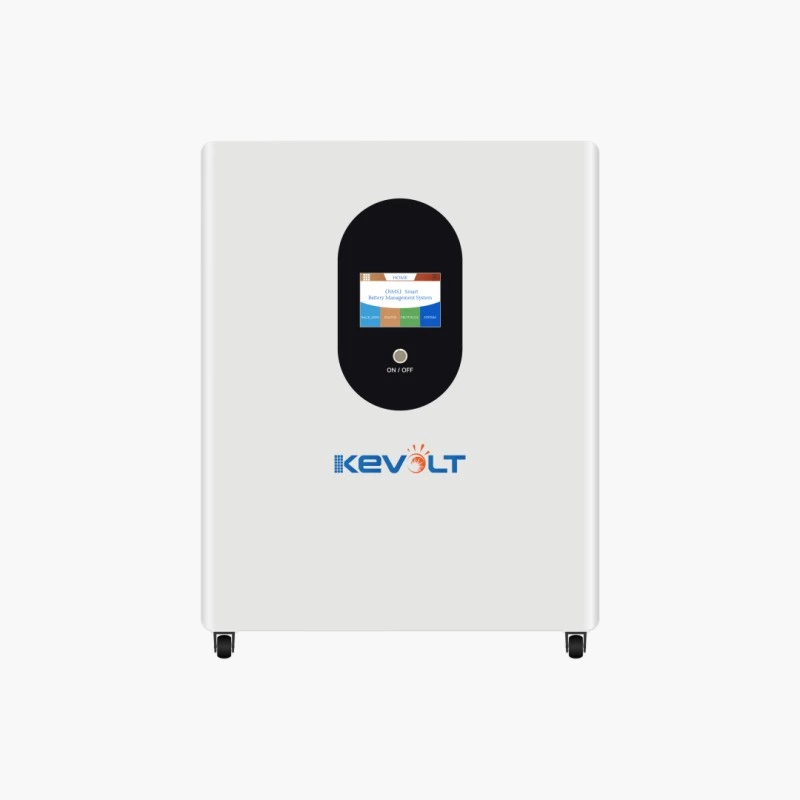

5. Color touch display.
6. Simple stacking installation design.
7. Compatible with 95% brand inverters.
8. Support 15 devices in parallel.
9. Universal wheels installed.
10. Integrated large battery design.
11. Support OEM/ODM.
Share This
kevolt's online shop：www.greensystem.en.alibaba.com / www.kevolt.en.alibaba.com
| Floor Mounted Battery | ||
| Model | KVP300Ah-LV | KVP400Ah-LV |
| Battery Type | LiFePO4 | |
| Rated Capacity | 300Ah | 400Ah |
| Battery Cell Series ＆ Parallels | 16S1P | 16S2P |
| Rated Energy | 15.36kWh | 20.48kWh |
| Suggested SOC | 20~100% | |
| Nominal Voltage | 51.2V | |
| Operation Voltage | 46.4~57.6V | |
| Suggest Charge/Discharge Current | 200A | 200A |
| Max Charge/Discharge Current | 200A | 200A |
| Parallel Quantity | Max 15 Pcs Park in Parallel | |
| Cycle Life （ @25℃, 80%DOD） | 6000 | |
| Operating Temperature | Charge: 0~50℃, Discharge: -20~60℃ | |
| Weight | 126kg | 165kg |
| Dimensions | 520*380*600mm | 645*385*815mm |
| Installation Method | Floor Mounted | |
| IP Grade | IP55 | |
| Communication | RS232, RS485, CAN | |
| Warranty | 10 Years | |
| Customizable Item | Capacity, Panel Pattern, LOGO, Packaging | |
